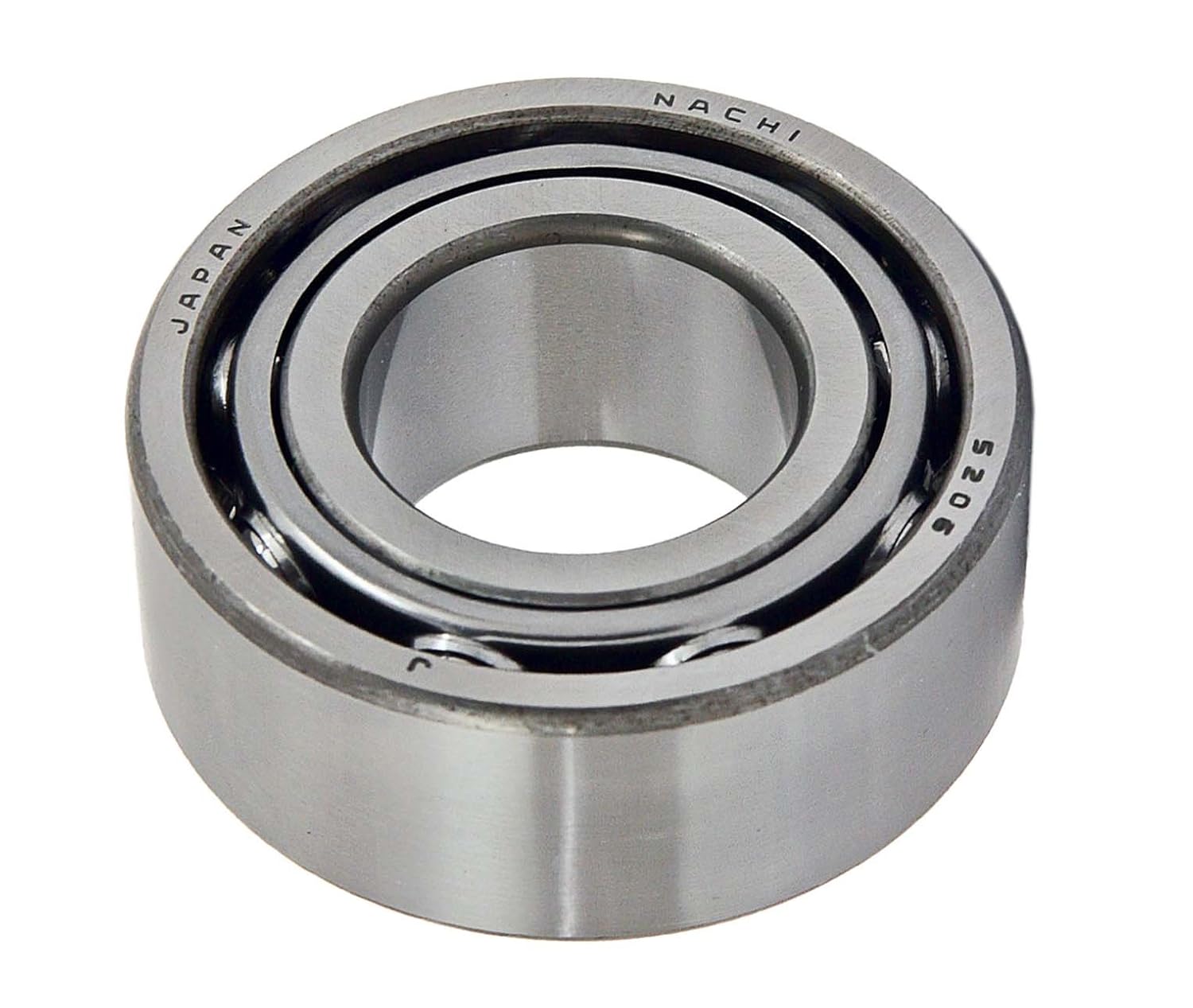

5206 Nachi Double Row Angular Contact Bearing 30x62x23.8 Japan Ball

5206 Row Angular Ball Bearing 30mm x 62mm x 23.8mm Made in Japan One Bearing 5206 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 30mm, outer diameter is 62mm and width is 23.8mm. * Item: 5206 Nachi Angular Ball Bearing * Type: Nachi Double Row Angular Ball Bearing * Closures: Open * Dimensions: 30mm x 62mm x 23.8mm/Metric * ID (inner diameter)/Bore: 30mm * OD (outer diameter): 62mm * Width/Height/thickness: 23.8mm * Size: 30 x 62 x 23.8 mm * Quantity: One Bearing * Dynamic load rating Cr: 30,500 N * Static load rating Cor: 21,700 N * Limiting Speed: * Grease Lubrication: 8,000 RPM * Oil Lubrication: 11,000 RPM * Made in Japan Nachi Double Row Angular Contact Bearing The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.

• Item: 5206 Nachi Angular Ball Bearing
• Type: Nachi Double Row Angular Ball Bearing
• Closures: Open
• Dimensions: 30mm x 62mm x 23.8mm/Metric
• ID (inner diameter)/Bore: 30mm
